4'' Rotary Table for Milling Machines, Horizontal Vertical Model, Precision Milling Rotary Table, for Milling Engineering Indexing Tools

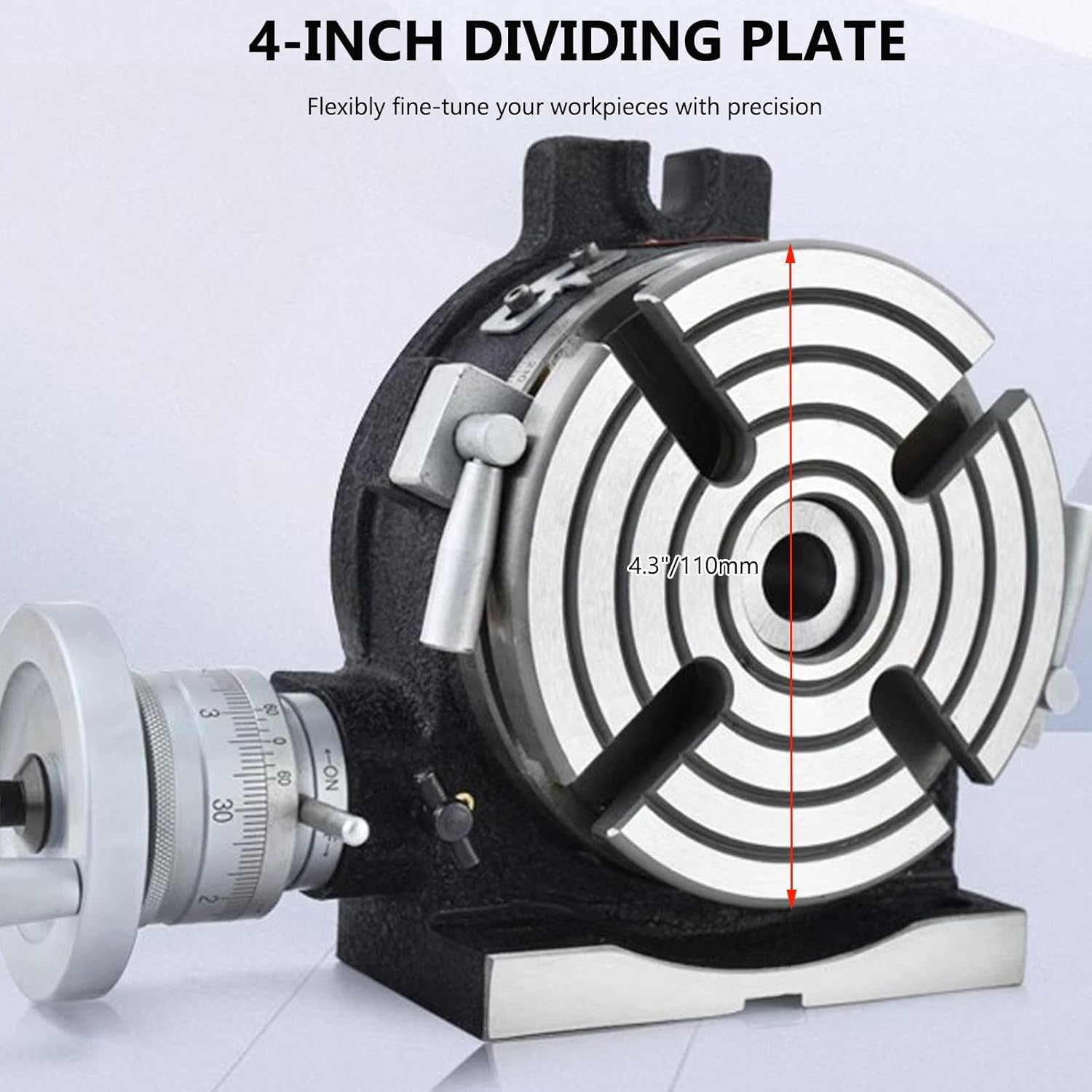

Made of cast iron to ensure long-lasting useSuitable for metal and wood mold processingCan be used horizontally and vertically, very convenientEquipped with a variety of accessories to make machining easierProduct SpecificationsWorktable Diameter: 4.3"/110mmTaper of Center Hole on Table Surface (Morse): MT2/MT2Center Height When Worktable Is Vertical: 3.2"/81.5mmWidth of T-shaped Groove on Table Surface: 0.5"/12Adjacent Angle of T-shaped Grooves on Table Surface: 120°/120°Width of Positioning Key: 0.5"/12Module of Worm Gear Pair: 1/1Transmission Ratio of Worm Gear Pair: 1:72/1:72Circumferential Scale of Worktable: 360°/360°Degrees of the Rotary Table Represented by Each Revolution of the Worm: 5°/5°Maximum Load (Horizontal): 331 lbs/150kgMaximum Load (Vertical): 165 lbs/75kgPackage Contents1 x Indexing Head + all accessoriesNote: The size is measured manually, there will be error, please refer to the actual size.Due to the different screen display, there is a certain color difference, please prevail in kind.If you do not understand or have any questions about this product, please feel free to contact us. We will reply within 24 hours, we are committed to customer satisfaction.

• Fine Material Selection: Manufactured with high-strength FC30 cast iron, it is firm, durable, and has a long service life, suitable for use in milling machines or other machinery for cutting and dividing operations.
• Rapid Division and Positioning: The vertical and horizontal universal dividing head is one of the main accessories of the milling machine. It can be used for indexing drilling, milling, circular cutting, boring, and spot facing on the milling machine. When the vertical position of the worktable is used in combination with the tailstock, it can also perform circular indexing drilling and milling on more complex workpieces.
• Horizontal or Vertical Use: The headstock of the milling machine dividing head supports horizontal or vertical use. Therefore, you can handle materials of different sizes by changing its angle, thus improving the convenience of operation.

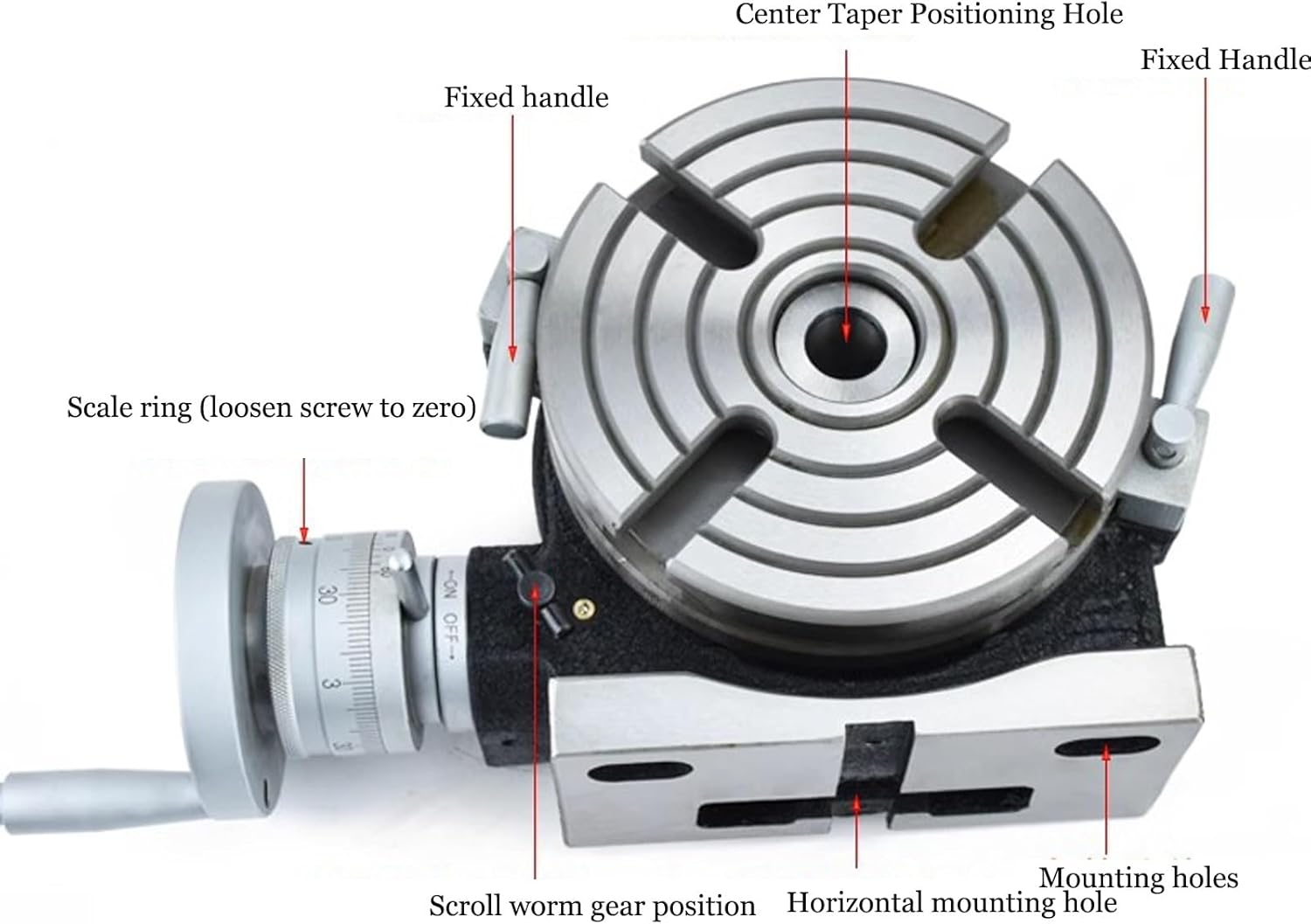

• Clear Scale and High Precision: The worktable has 360° graduation lines, a scale ring with a scale value of 1' and a vernier ring with a minimum differentiation value of 10". The rotary worktable is equipped with a braking and indexing worm disengagement mechanism.

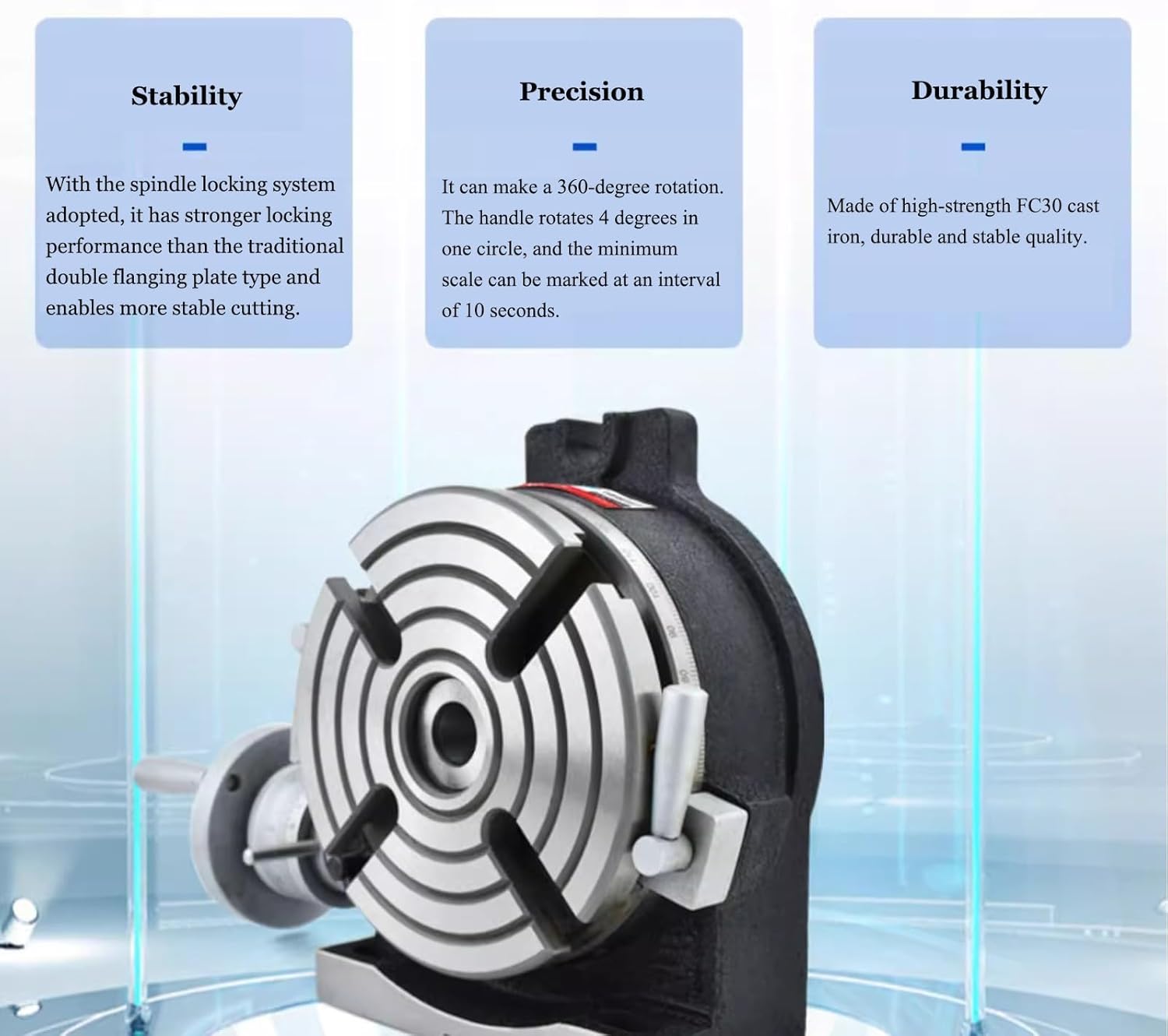

• Stable Support: Adopting a new spindle locking system. Compared with the traditional double-sided pressure plate type, the new spindle locking system has stronger locking and more stable cutting.
